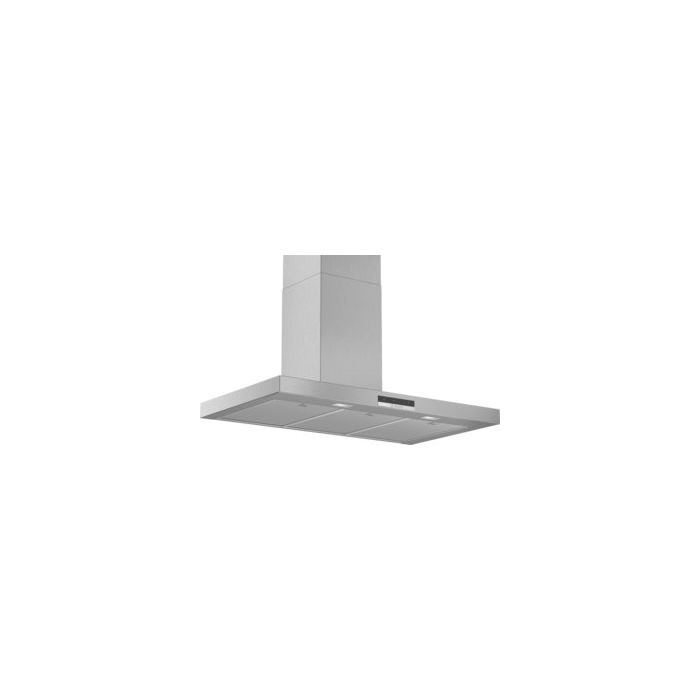

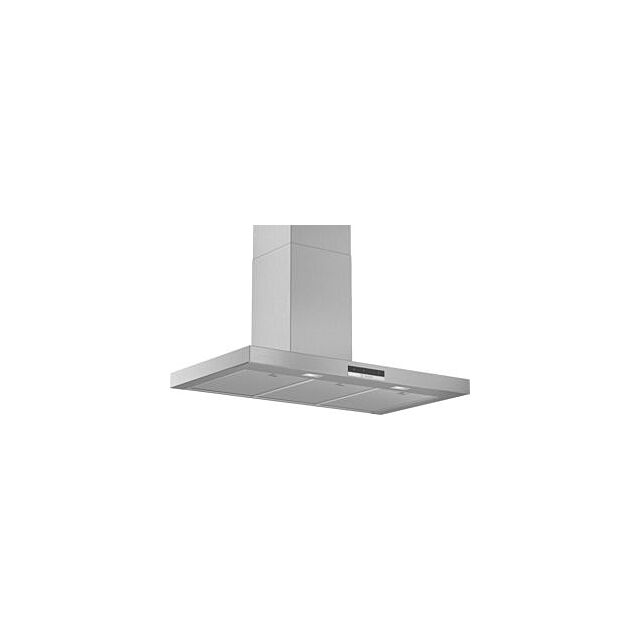

Bosch DWB96DM50B, Wall-mounted cooker hood
Call 01745 344501 for availability
- Colour: Stainless Steel
- Manufacturer Guarantee: 2 years
- EAN: 4242005051120
Key performance features:
- Energy Efficiency Class: B (at a range of energy efficiency classes from A+++ to D)
- Maximum extraction rate exhaust air 372 m³/h according to EN 61591
- Extraction rate according to EN 61591 ø 15 cm:
- max. Normal use 372m³/h
- Intensive 604 m³/h
- Noise max. Normal Level: Noise, max. speed in normal us: 60 dB dB*

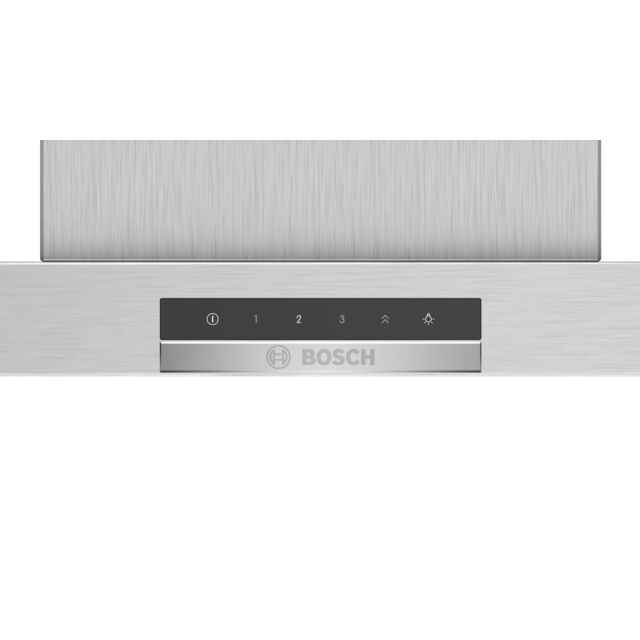

- TouchControl with Electronic display
- Electronic display
- 3 power levels & intensive setting
- 2 x 1.5W LED light
- Colour Temperature: 3500 K
- Automatic intensive revert (6mins)

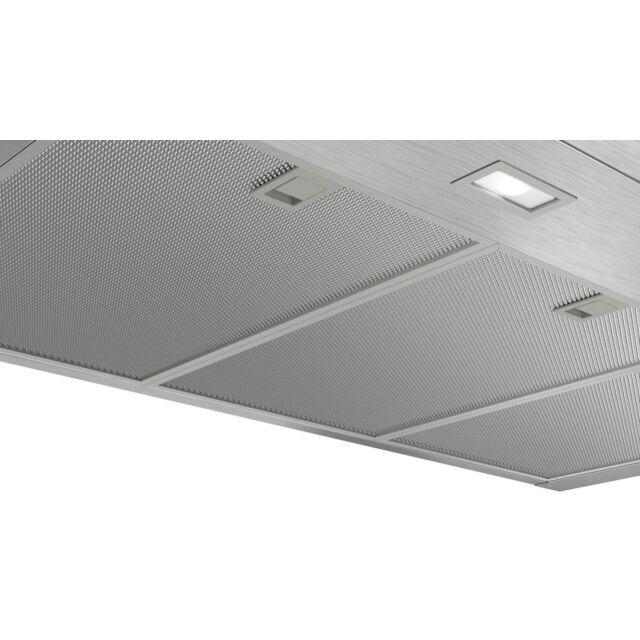

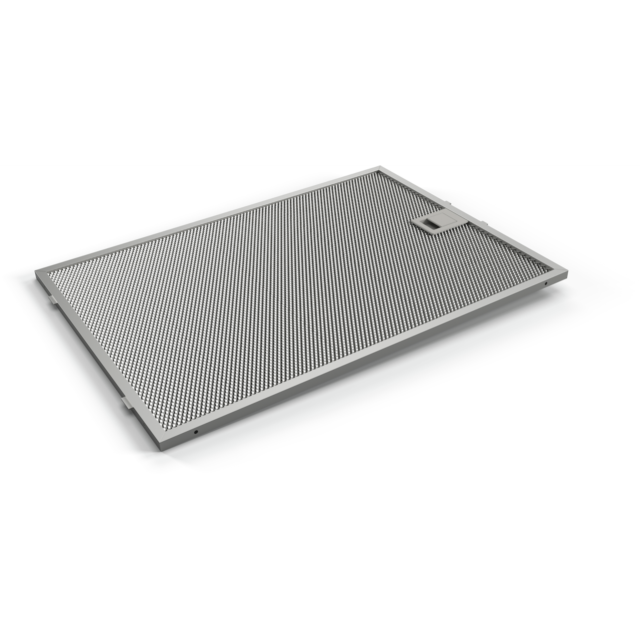

- 3 removable metal grease filter cassettes

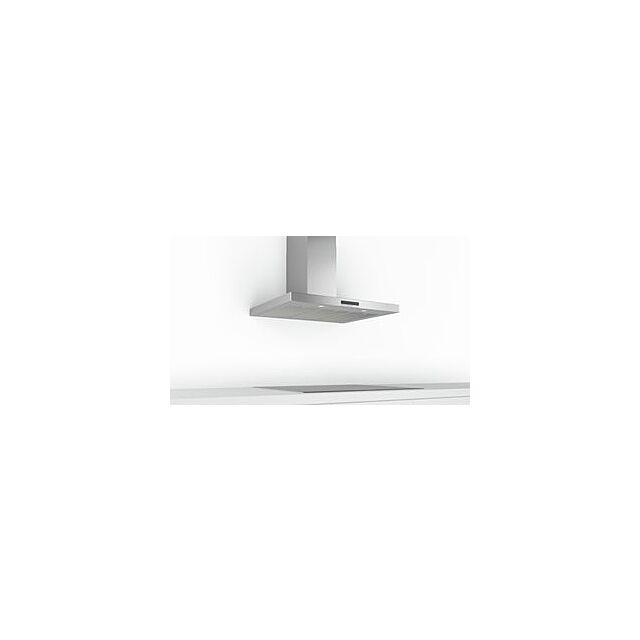

- Installation: wall
- Chimney extractor hood
- TouchControl
- Electronic control
- Suitable for ducted or recirculating operation
- For recirculated extraction recirculating kit or CleanAir recirculating kit (accessory) needed
- Max. extraction rate: 604 m3/h
- Noise level according to EN 60704-3 and EN 60704-2-13 exhaust air:
- Max. normal use: 60dB(A) re 1 pW
- Intensive: 70 dB(A) re 1 pW
- With the Clean Air Plus recirculation kit (available as optional accessory) your appliances reaches:
- Extraction rate in recirculation mode:
- Max. normal use: 337m³/h
- Intensive: 441m³/h
- Noise level in recirculation mode:
- Max. normal use: 70dB(A) re 1 pW
- Intensive: 74 dB(A) re 1 pW
- Power rating: 220 W
- Light Intensity: 214 lux
- Electrical cable length 1.3 m
- Diameter pipe Ø 150 mm (Ø 120 mm enclosed)
- Dimensions exhaust air (HxWxD): 635-965 x 900 x 500 mm
- Dimensions recirculating (HxWxD): 635-1075 x 900 x 500 mm
- Dimensions recirculating with CleanAir module (HxWxD):
- 703 x 900 x 500mm - mounting with outer chimney
- 833-1163 x 900 x 500 mm - mounting with telescopic chimney
- Blower Efficiency Class: A*
- Lighting Efficiency Class: A*
- Grease Filtering Efficiency Class: C*
- Average Energy Consumption: 48.5 kWh/year*
- Recirculating kit DHZ1225
| Manufacturer | Bosch |
|---|---|
| GTIN | 4242005051120 |
| Colour | Stainless Steel |
| Model Number | DWB96DM50B |
| Max Output Air Extraction | 372 |
| Max Output Recirculating Air | 337 |
| Grease Filter Material | Washable aluminium |
| Grease Filter Type | Kassette |
| Number of Motors | 1 |
| Sound Power Boost | 70 |
| Noise Level Boost Position | 70 |
| Boost Position Air Extraction | 604 |
| Boost Position Output Recirculating | 441 |
| Chimney Material | Stainless steel |
| Height without Chimney | 53 |
| Sound Power Min Speed | 48 |
| Appliance Current (A) | 10 |
| Appliance Voltage (V) | 220-240 |
| Appliance Frequency (Hz) | 50; 60 |
| Approval Certificates | CE, E17D UKCA marking, VDE |
| Plug Type | GB plug |
| Cord Length | 130 |
| Installation Type | Built-In |
| Type of Control / Appliances | Electronic |
| Type of Control Settings | touch control |
| Construction Type | Built-In |
| Type of Light | LED |
| Typology | Wall-mounted |
| Operating Mode | Convertible |
| Motor Location | Integrated motor in hood chimney |
| Fluid Dynamic Efficiency | 29.0 |
| Fluid Dynamic Efficiency Class | A |
| Lighting Efficiency | 61.1 |
| Lighting Efficiency Class | A |
| Grease Filtering Efficiency | 75.6 |
| Grease Filtering Efficiency Class | C |
| Max Air Flow | 372 |
| Min Air Flow | 222 |
| Air Flow Boost | 605 |
| Number of Lights | 2 |
| Sound Power Max Speed | 60 |
| Chimney Colour | Stainless steel |
| Warranty Duration | 2 |
| Energy Efficiency Class | B |
| Noise Level | 60 |
| Expired Status | No |
| Is On Display | false |
| Is Soft Bundle | No |
