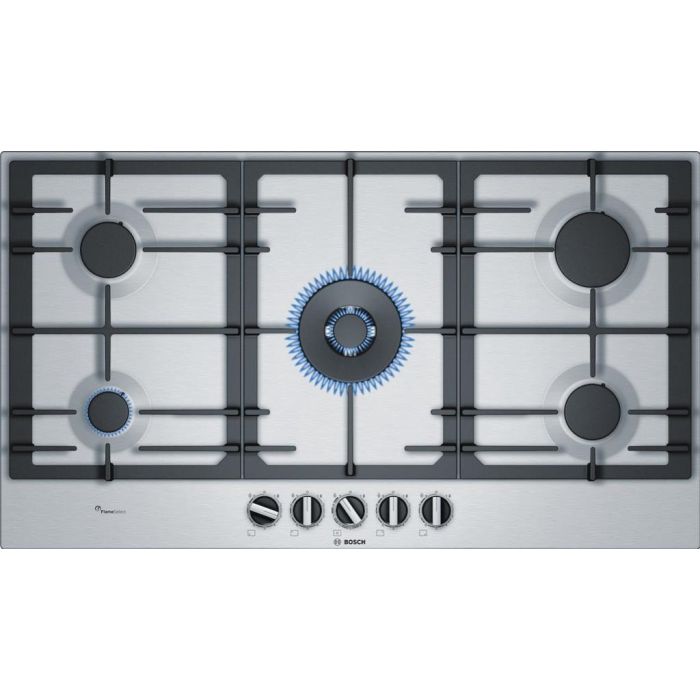

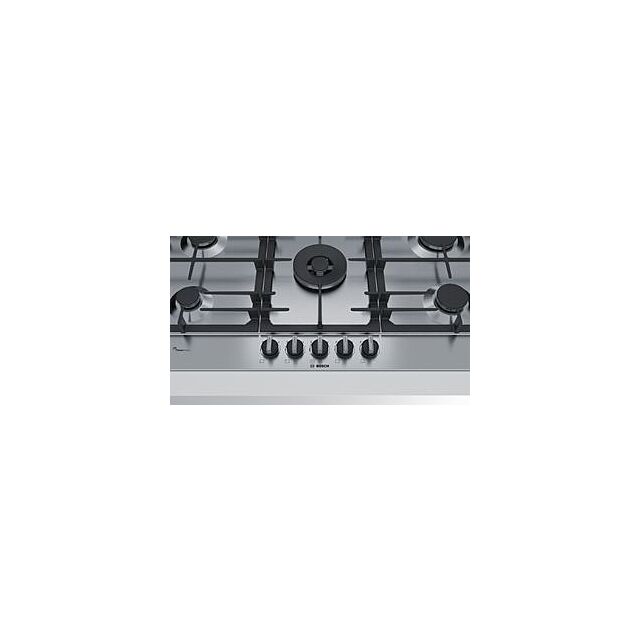

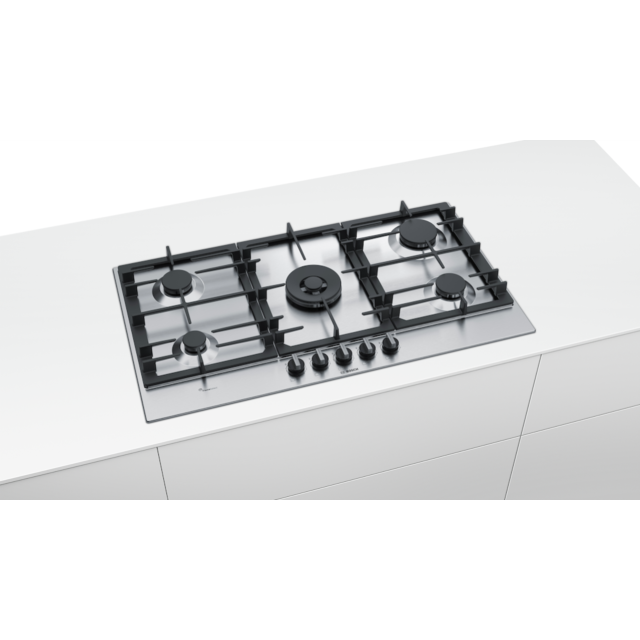

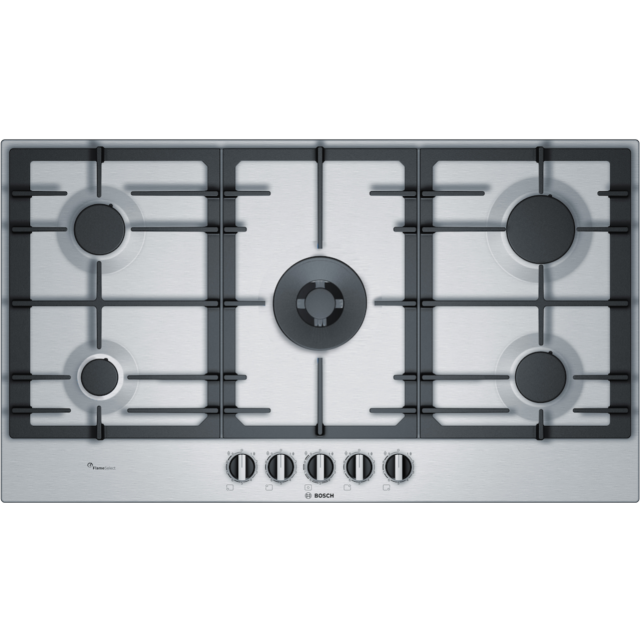

Bosch PCR9A5B90, Gas hob
Call 01745 344501 for availability
Colour:
Stainless ste
Manufacturer Guarantee:
2 years
EAN:
4242002802787
Design
- Stainless steel surface
- Cast iron pan supports
- FlameSelect: precisely control and adjust the flame in nine defined levels.
- Design co-ordinated control dials: easily access dials in front with strong grip for effortless turning.
- Ignition via control dials: just push and turn the dials to ignite the flame.
- 5 gas burners:

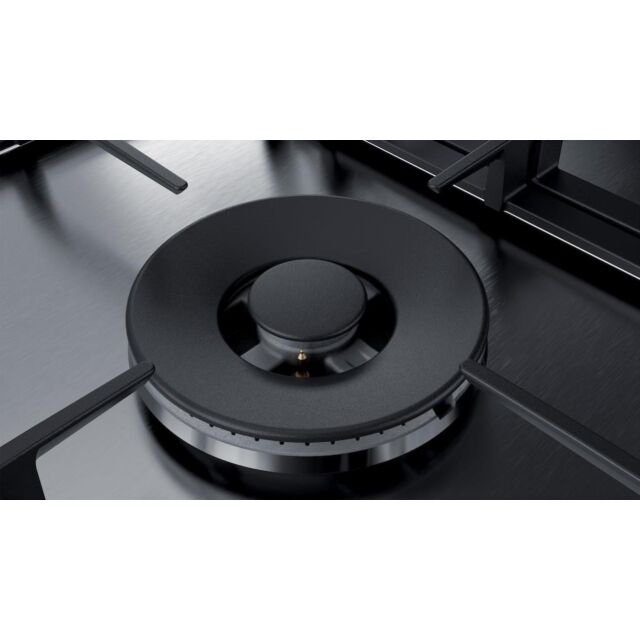

- Including 1 dual control wok burner: use an extra wide power range, separately controlling two flame rings.
- Left front: economy burner up to 1 kW (depending on gas type)
- Left rear: Standard burner up to 1.75 KW (depending on gas type)
- Center front: wok burner up to 5 KW (depending on gas type)
- Right rear: high-speed burner up to 3 KW (depending on gas type)
- Right front: standard burner up to 1.75 KW (depending on gas type)
- Flame failure safety device: prevents unwanted gas flow when flame goes out.
- Usable for: Natural gas H 25 mbar (HU)
- Nat gas L/LL G25/20mbar(DE) NG H/E 20mbar, E+ 20/25mbar Natural gas L 25 mbar (NL) Liquid gas G30,31 28-30/37mbar Liquid gas G30 37 mbar (PL) Liquid gas 50 mbar
- Pre-set for natural gas
- Nozzle set for LPG jets included. Connection to 28-30/37 mbar bottled gas. Nozzles for all other gas types can be ordered via the customer service. For nozzle change, please contact the customer service.
- Dimensions of the product (HxWxD mm): 53 x 915 x 520
- Required niche size for installation (HxWxD mm) : 45 x 850 x (490 - 502)
- Min. worktop thickness: 30 mm
- Power cord: 1.5 m
- Connected load: 12.5 KW
| Expired Status | No |
|---|---|
| Type of Lid | Without |
| Is On Display | false |
| Type of Safety for Gas | Electromagnetic for each burner |
| Residual Heat Indicator Type | Without |
| Manufacturer | Bosch |
| Number of Gas Burners | 5 |
| Is Soft Bundle | No |
| Ignition System | Yes |
| Type of Pan Support | Elongated cast iron pan support |
| GTIN | 4242002802787 |
| Colour | Stainless ste |
| Model Number | PCR9A5B90 |
| Alternative Fuel Type | Liquid gas G30,31 28-30/37mbar |
| Fuel Type | Nat gas H/E/(L) 20 (25) mbar |
| Colour of Frame | Stainless steel |
| Energy Input | Gas |
| Cooker / Oven Control Panel Location | Front |
| Appliance Current (A) | 3 |
| Appliance Voltage (V) | 220-240 |
| Appliance Frequency (Hz) | 50; 60 |
| Approval Certificates | CE, Morocco |
| Plug Type | no plug (electrical connection by electrician) |
| Cord Length | 150 |
| Min Niche Height | 490 |
| Max Niche Height | 502 |
| Min Niche Width | 850 |
| Max Niche Width | 852 |
| Niche Depth | 45 |
| Installation Type | Built-In |
| Type of Control / Appliances | Mechanical |
| Type of Control Settings | sword knobs |
| Construction Type | Built-In |
| Safety Features | Flame failure safety device |
| Cooker / Oven Time Options | No delay options |
